Agitator A MAN R

Description

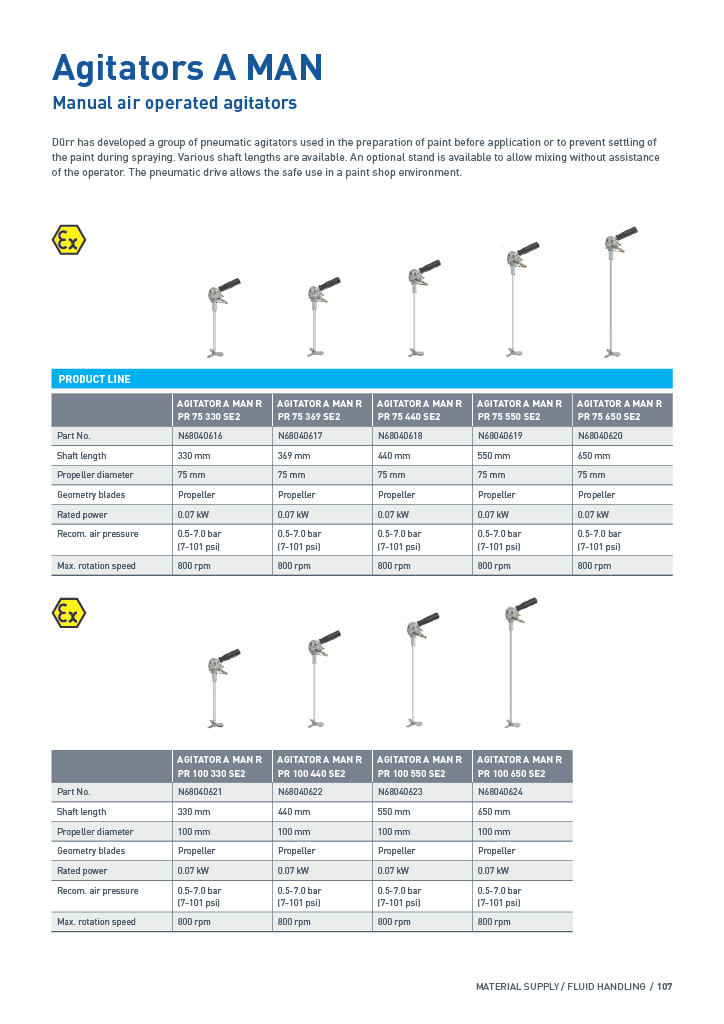

Europe’s most popular paint mixer for 20 liter or smaller paint containers, made in the Czech Republic.



Description

Europe’s most popular paint mixer for 20 liter or smaller paint containers, made in the Czech Republic.

  • Power: max 0,07 kW
  • Usage pressure: min 0,5 – max 7 bar
  • Air hose connection: DN 8mm
  • Propeller diameter: 75, 100 mm
  • Recommended rotation speed: up to 800 rpm
  • Shaft lengths: 330, 440, 550, 650 mm
  • Weight: Ca. 1,5 kg

Additional information

Brand

Dürr

Dimensions

Stand

  • Insert the agitator into the base bracket (2)
  • Tighten the wing screw (1) until the agitator is secured
  • Adjust the height of the tripod using the butterfly screw (3).

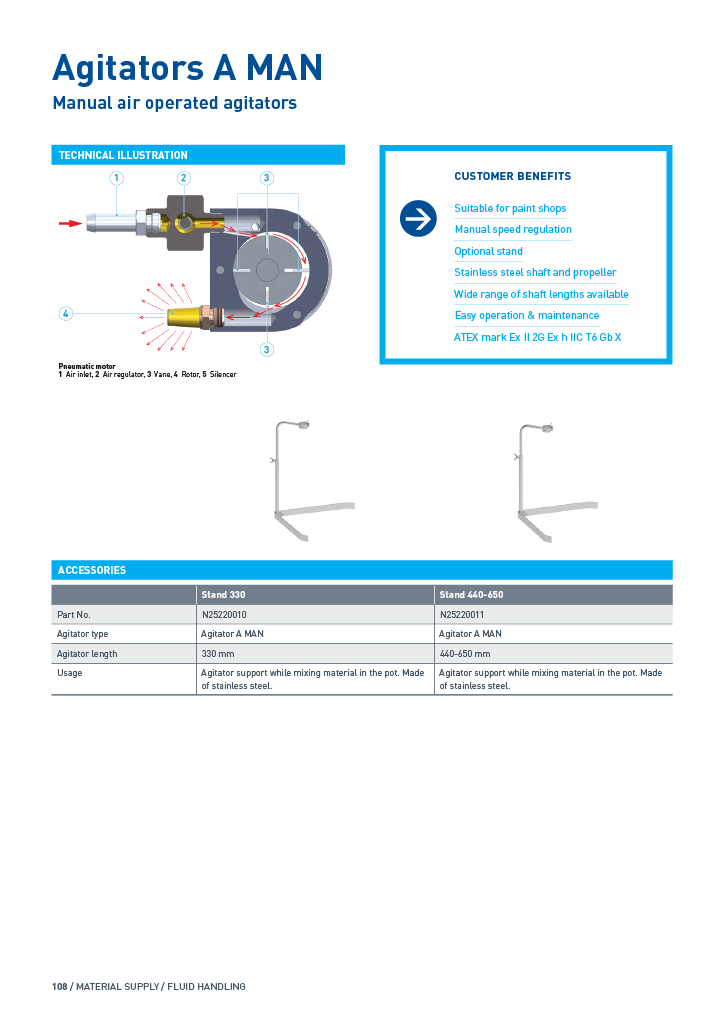

Motor

Agitator A MAN R pneumatic motor

  1. (1) Air inlet
  2. (2) Air regulator
  3. (3) Blade
  4. (4) Rotor
  5. (5) Muffler
